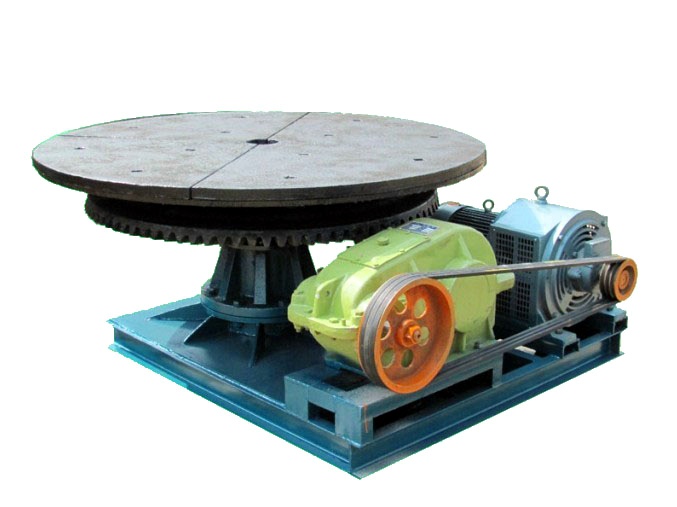

座式圆盘给料机

【公司理念】:产品即人品,诚信永无疆!

【主营业务】:输送设备、给料设备、筛分设备等的研发、生产、销售、技术输出等业务。

全国服务热线:15037310568
详细介绍

产品简介 Product introductio


   圆盘给料机是一种应用广泛的连续式容积加料设备它主要适用于 20mm 以下粉矿的给料设备, 该机是利用物料的流动性, 通过转动的圆盘和可调节的料桶及刮料板把物料从容器中刮送到受料设备中,适用于各种非粘性且流动性不是非常好的物料。该类机型设计紧凑结构简单,调节方便,使用可靠,维修量小,噪音低,是水泥厂,化工行业,发电厂等部门首选的系统配给料设备, 同时可作为其它行业非粘性物料的喂 (给) 设备。该机型分座式和吊式两种。

The disk feeder is a kind of continuous positive displacement feeder which is widely used

With the fluidity of materials, materials can be scraped from the container to the receiving equipment through rotating disc and adjustable bucket and scraper. It is suitable for various non-viscous and non-fluidity materials.This type of machine is simple in design, simple in structure, easy to adjust, reliable in use, low in maintenance and low in noise. It is the preferred system feeding equipment for cement plant, chemical industry, power plant and other departments, and can be used as feeding (feeding) equipment for non-sticky materials in other industries.This machine is divided into two types: block type and hoist type.

选型参数  Parameter Selection Table

表一 座式圆盘给料机 Table 1:Seated type disc feeder

型号           Model

BR10

BR15

BR20

KR10

KR15

KR20

圆盘直径mm    Diameter

1000

1500

2000

1000

1500

2000

圆盘转速r/min   Speed

6.3

6.3

5

7.5

7.5

7.5

最大给料粒度mm Max Particle

<50

给料能力m³/h    Capacity

13

30

80

14

25

100

电动机Motor

型号   Model

Y132S-6

Y160M-6

Y160L-6

Y112M-6

Y132M2-6

Y160L-6

功率kw Power

3

7.5

11

2.2

5.5

11

减速机

reduction box

型号  Model

ZS50-3

ZS75-3

ZS80-3

ZQ350

ZQ400

ZQ500

速比 speed ratio

63

63

87

31.5

31.5

31.5

表二 吊式圆盘给料机Table 2:Suspended type disc feeder

   参数Parameter

型 号Model

DK6                DB6

DK8              DB8

DK10

 DB10

DK13

  DB13

DK16

 DB16

DK18

 DB18

DK20

 DB20

圆盘直径mm   Diameter

600

800

1000

1300

1600

1800

2000

转速r/min   Speed

2-8

2-8

1.9-7.5

1.6-6.5

1.5-6

1.25-5

1.25-5

产能m³/h   Capacity

1.28-2.25

2.2-4.42

4.8-9.64

8-16.1

13.1-28.1

17.4-34.6

25.4-51

功率kw   Power

1.1

1.1

1.5

3

4

5.5

7.5

最大粒度mm  Max Particle

25

30

40

50

60

70

80

设备重量kg  Total Weight

DK

440

560

860

1160

2050

3100

3300

DB

500

600

910

1280

2300

-

-
